Model 2330™ Mechanical Dual Cylinder Scale

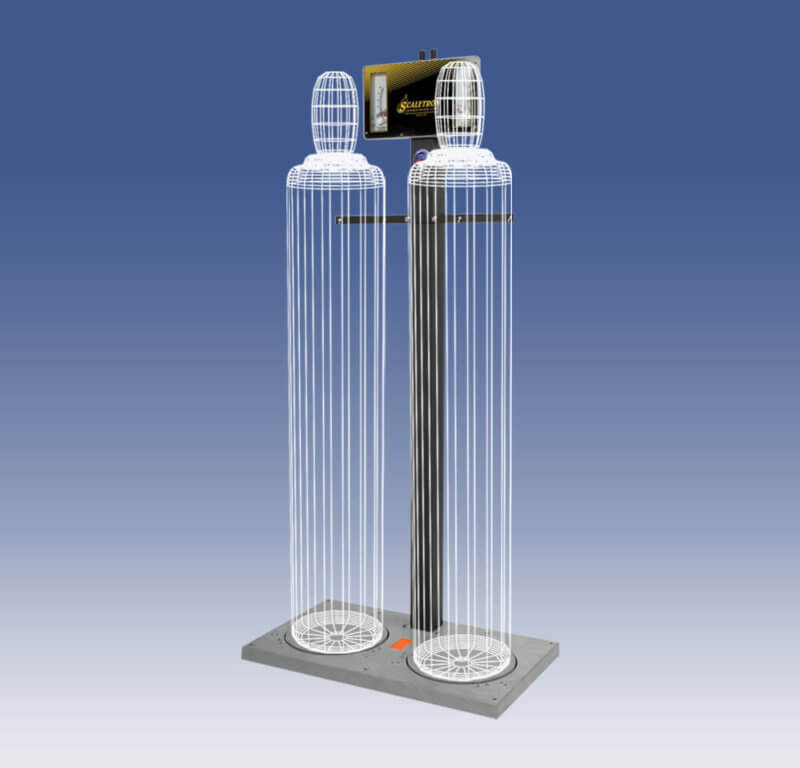

Model 2330 Mechanical Dual Cylinder Scale


  • Designed for weighing cylinders up to 12” in diameter
  • Two independent weighing disks and dials
  • Base size: 32″x18″
  • Net capacity: Up to 150 lbs. (70 kg) per disk
  • High accuracy of ±1% of capacity
  • Mechanical spring and lever movement
  • Readout in pounds or kilograms
  • Patented

Request Quote Buy Online


Scaletron 5 Year Warranty on All Scale Products

Dual Mechanical Scale is Ideal for Locations Where Power is Not Readily Available

The Model 2330 Mechanical Dual Cylinder Scale is designed for weighing two gas cylinders up to 12″ in diameter simultaneously and offers a net capacity of up to 150 lbs. Featuring corrosion resistant construction and a three-point suspension on the weighing disks, the low-profile base allows for safe and easy handling of cylinders. Indicator dials are housed in a sealed enclosure and provide tare adjustment for each cylinder. MADE IN USA.

Standard Features

  • Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder coated finish, with molded fiberglass reinforced thermoplastic base and weighing disks for use in harsh environments
  • Low profile platform design (1 1/2″) increases safety and ease of cylinder handling
  • Spring dial displays, one per each cylinder housed in molded fiberglass reinforced thermoplastic enclosure to provide protection from acids
  • All hardware is stainless steel to prevent corrosion
  • Self-locking tare adjustment knob
  • Cylinder support and chains

Indicator Options

  • Dials available in pounds or kilograms


  • Scale is designed to accurately measure weight of ammonia, carbon dioxide, hydrogen chloride, liquefied chlorine, sulfur dioxide and other liquid gases
