Scaletron™ Sets The Standard
In Corrosion Resistance™
In Corrosion Resistance™
| Part Number | 2350 |
|---|---|

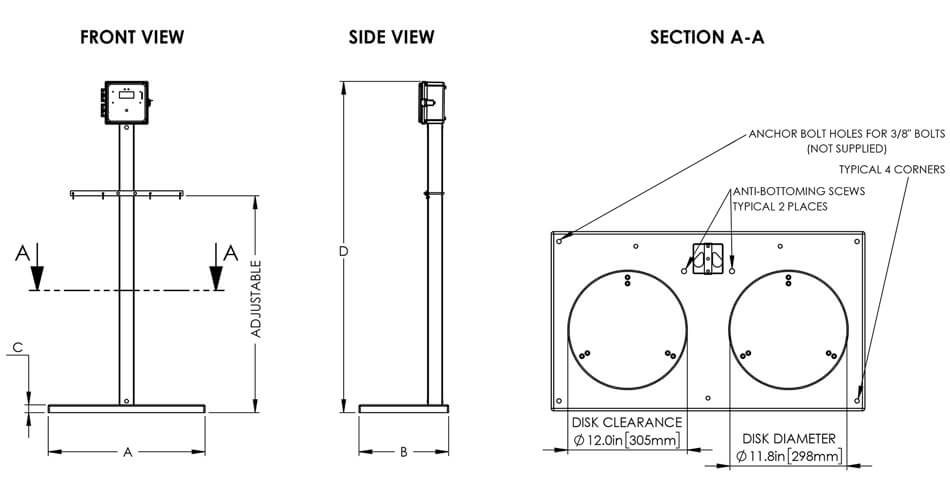

| Platform Length (A) | 31.5" (800 mm) |
| Platform Width (B) | 18.0" (457 mm) |
| Platform Height (C) | 1.50" (38 mm) |
| D | 66.5" (1690 mm) |
| Net Capacity | Up to 150 lbs. (68 or 70 kg) per disk |
| Weight | 27 lbs. scale; 15 lbs. post |
| Part Number | AccuPro 1000 | AccuPro 5000-EK (Discontinued) | AccuPro 5000-PB (Discontinued) | AccuPro 6000-TS |
|---|---|---|---|---|
| Description | Digital Scale Controller and Measurement System | Digital Scale Controller and Measurement System | Digital Scale Controller and Measurement System | Digital Scale Controller and Measurement System |
| Interface | Keypad with four (4) push buttons | Encoder knob push/turn control | Keypad with three (3) push buttons | Touch screen |
| Accuracy | ±0.1% to ±0.25% of full scale capacity | ±0.1% to ±0.25% of full scale capacity | ±0.1% to ±0.25% of full scale capacity | ±0.1% to ±0.25% of full scale capacity |
| Display | Backlit graphical LCD with up to 6 weight digits | 2 Line x 16 character alphanumeric/graphic backlit LCD with 6 digits for weight | 2 Line x 16 character alphanumeric/graphic backlit LCD with 6 digits for weight | 4.3" Alphanumeric/graphic color LCD touch screen display with adjustable brightness |
| Display Items | Displays net or gross weight, display unit, tare, mA output signal (if applicable), and error status | Displays net weight plus bar graph with net weight, gross weight and tare adjustment | Displays net weight plus bar graph with net weight, gross weight and tare adjustment | Displays net and gross weight; net and gross percent (%); net and gross weight bar graphs plus mA out, tare adjustment and set point values |
| Display Screens | One (1) per channel | One (1) single-channel and one (1) dual-channel weight display | One (1) single-channel and one (1) dual-channel weight display | Up to eleven (11) single-channel and five (5) dual-channel weight displays |
| Display Units | Pounds, kilograms, gallons, or liters | Pounds, kilograms, gallons or liters | Pounds, kilograms, gallons or liters | Pounds, kilograms, gallons or liters |
| Channels | 1 or 2 - One scale base per channel | 1 or 2 - One scale base per channel | 1 or 2 - One scale base per channel | 1 or 2 - One scale base per channel |
| Output Signal | 4-20 mA output per channel, based on net weight, scale or loop powered | 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, selectable as scale or loop powered | 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, scale or loop powered | 4-20mA Standard – 1 Output per channel, scale powered |
| Set Points | 2 or 4 Relay contacts optional per channel (high or low) - dry contact 3A relay with N.O and N.C connection | 2 or 4 Relay contacts optional per channel (high or low) - dry contact 3A relay with N.O and N.C connection | 2 or 4 Relay contacts optional per channel (high or low) - dry contact 3A relay with N.O and N.C connection | |
| Remote Option | Can be remotely mounted up to 200 feet from base frame | Can be remotely mounted up to 200 feet from base frame | Can be remotely mounted up to 200 feet from base frame | Can be remotely mounted up to 200 feet from base frame |
| Audible Alarm | 78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support | 78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support | Optional 78 dB internal piezo buzzer, external buzzer support | |
| Communication Option | Remote monitoring with either Modbus TCP through ethernet or Modbus RTU via RS-232/RS-485 serial network | |||
| Power | 100-250 VAC, 50/60 Hz, max 6 watts | 90/240 VAC, 50/60 Hz, 0.10/0.05A | 90/240 VAC, 50/60 Hz, 0.10/0.05A | 100/277 VAC, 50/60 Hz, 0.10/0.05A |
| Enclosure | NEMA 4X, UL approved wall mount enclosure | NEMA 4X, UL approved wall mount enclosure | NEMA 4X, UL approved wall mount enclosure | NEMA 4X, UL approved enclosure |
| Weight | 7 lbs. | 7 lbs. | 7 lbs. | 7 lbs. |
