Model AccuPro 5000-PB™ Digital Scale Controller with Keypad Specifications

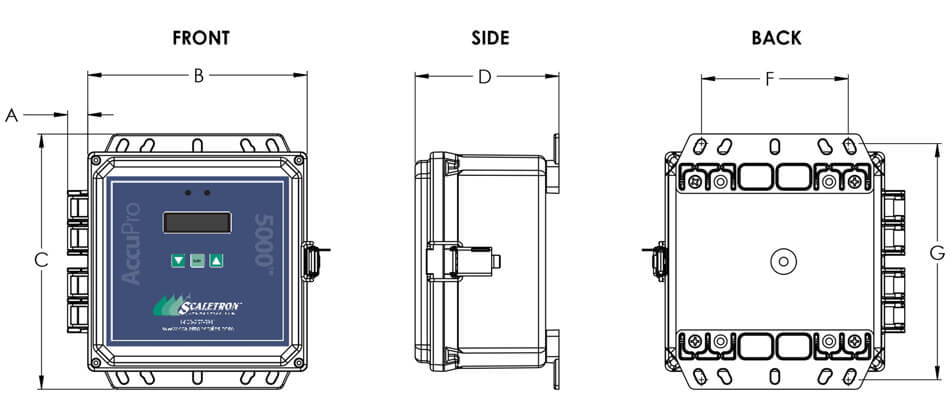

Model AccuPro 5000-PB Dimension Drawing
Part Number AccuPro 5000-PB
A .79 (20 mm)
B 8.59" (218 mm)
C 9.99" (254 mm)
D 5.63" (143 mm)
E .88" (22 mm)
F 5.75" (146 mm)
G 9.25" (235 mm)
Interface Keypad with three (3) push buttons
Accuracy ±0.1% to ±0.25% of full scale capacity
Display 2 Line x 16 character alphanumeric/graphic backlit LCD with 6 digits for weight
Display Items Displays net weight plus bar graph with net weight, gross weight and tare adjustment
Display Screens One (1) single-channel and one (1) dual-channel weight display
Display Units Pounds, kilograms, gallons or liters
Channels 1 or 2 - One scale base per channel
Output Signal 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, scale or loop powered
Set Points 2 or 4 Relay contacts optional per channel (high or low) - dry contact 3A relay with N.O and N.C connection
Remote Option Can be remotely mounted up to 200 feet from base frame
Audible Alarm 78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support
Power 90/240 VAC, 50/60 Hz, 0.10/0.05A
Enclosure NEMA 4X, UL approved wall mount enclosure
Weight 7 lbs.
