Scaletron™ Sets The Standard
In Corrosion Resistance™
In Corrosion Resistance™

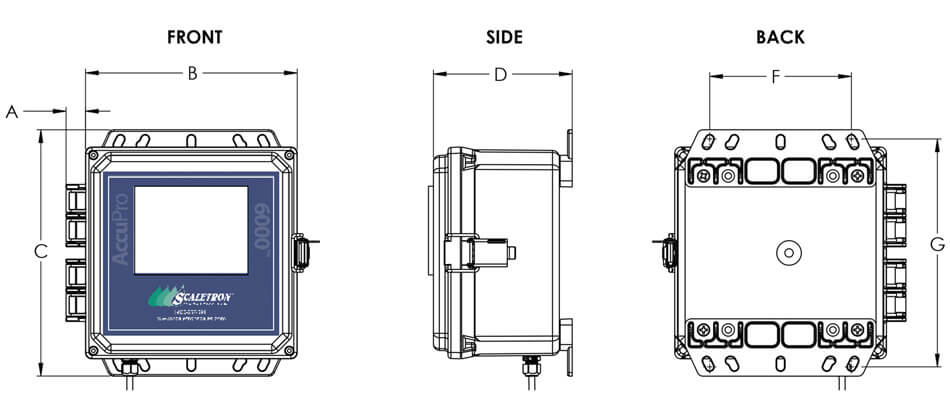

| Part Number | AccuPro 6000-TS |
|---|---|
| A | .79" (20 mm) |
| B | 8.59" (218 mm) |
| C | 9.99" (254 mm) |
| D | 5.63" (143 mm) |
| F | 5.75" (146 mm) |
| G | 9.25" (235 mm) |
| Interface | Touch screen |
| Accuracy | ±0.1% to ±0.25% of full scale capacity |
| Display | 4.3" Alphanumeric/graphic color LCD touch screen display with adjustable brightness |
| Display Items | Displays net and gross weight; net and gross percent (%); net and gross weight bar graphs plus mA out, tare adjustment and set point values |
| Display Screens | Up to eleven (11) single-channel and five (5) dual-channel weight displays |
| Display Units | Pounds, kilograms, gallons or liters |
| Channels | 1 or 2 - One scale base per channel |
| Output Signal | 4-20mA Standard – 1 Output per channel, scale powered |
| Set Points | 2 or 4 Relay contacts optional per channel (high or low) - dry contact 3A relay with N.O and N.C connection |
| Remote Option | Can be remotely mounted up to 200 feet from base frame |
| Audible Alarm | Optional 78 dB internal piezo buzzer, external buzzer support |
| Communication Option | Remote monitoring with either Modbus TCP through ethernet or Modbus RTU via RS-232/RS-485 serial network |
| Power | 100/277 VAC, 50/60 Hz, 0.10/0.05A |
| Enclosure | NEMA 4X, UL approved enclosure |
| Weight | 7 lbs. |
