Model 4042-63 IBC™ Spill Containment IBC Tote Scale Specifications

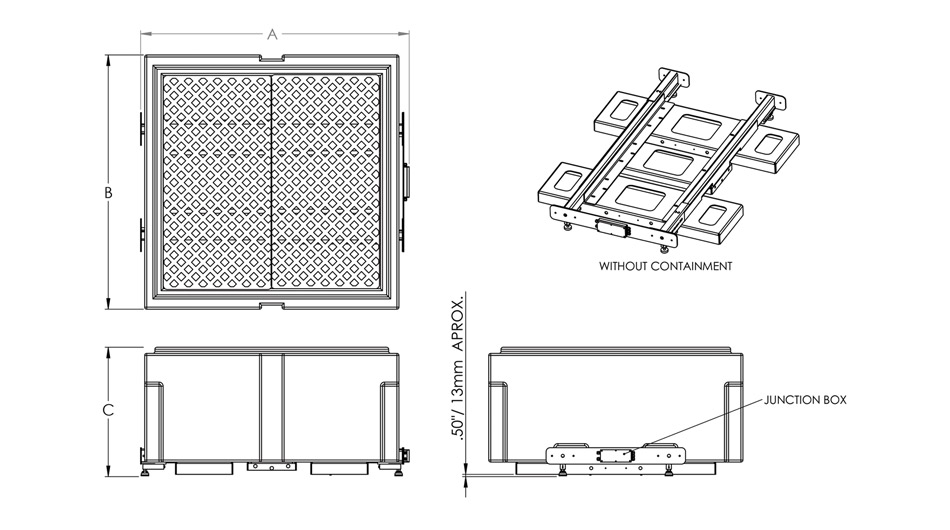

Model 4042-63-IBC Dimension Drawing

Scale Base

Part Number 4042-63 IBC
Platform Length (A) 62.00" (1575 mm)
Platform Width (B) 62.00" (1575 mm)
Platform Height (C) 31.5" (800 mm)
D 65.75" (1670 mm)
Net Capacity Up to 8000 lbs. (3629 kg) – other capacities available (150% overload protection is provided)
Containment Capacity 365 gal.
Weight 570 lbs.

Digital Controllers

Part Number AccuPro 5000-EK AccuPro 5000-PB 1099
Description Digital Scale Controller Digital Scale Controller Chemical Process Controller
Interface Encoder knob Keypad with three (3) push buttons 20 Button keypad
Accuracy ±0.1% to ±0.25% of full scale capacity ±0.1% to ±0.25% of full scale capacity ±0.1% to 0.25% of full scale capacity
Display 6 Digit alphanumeric backlit LCD 6 Digit alphanumeric backlit LCD 6 Digit LED display for weight values plus backlit LCD alphanumeric display
Display Units Pounds, kilograms, gallons or liters Pounds, kilograms, gallons or liters Pounds, kilograms, gallons or liters
Channels 1 or 2 - One scale base per channel 1 or 2 - One scale base per channel Up to 4
4-20 mA 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, scale or loop powered 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, scale or loop powered Standard on channel 1 – Loop powered (available for channels 2 thru 4)
Set Points 2 or 4 Relay contacts per channel (high or low) 2 or 4 Relay contacts per channel (high or low) 1 to 4 Relay contacts (high or low)
Remote Option Can be remotely mounted up to 200 feet from base frame Can be remotely mounted up to 200 feet from base frame Can be remotely mounted up to 200 feet from base frame
Audible Alarm Built-in piezo buzzer alarm with adjustable volume Built-in piezo buzzer alarm with adjustable volume Optional piezo buzzer alarm with adjustable volume
Power 120/240 VAC, 50/60 Hz, 0.10/0.05A 120/240 VAC, 50/60 Hz, 0.10/0.05A 120/240 VAC, 50/60 Hz, 0.10/0.05A
Enclosure NEMA 4X, UL approved enclosure NEMA 4X, UL approved enclosure NEMA 4X, UL approved enclosure
Weight 7 lbs. 7 lbs. 9 lbs.
