Model 4042WB-26×52™ Spill Containment Dual Drum Scale with Bladder Specifications

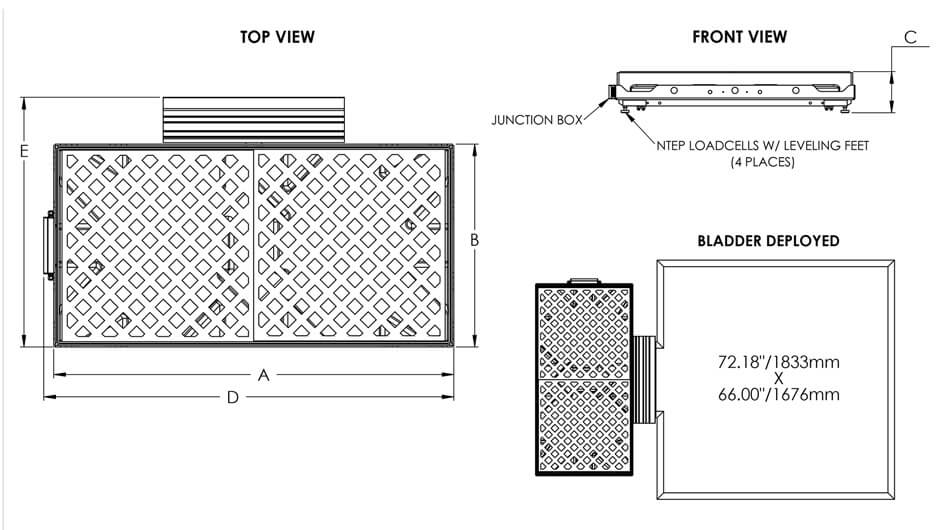

Model 4042WB-26x52 Dimension Drawing

Scale Base

Part Number 4042WB-26x52
Platform Length (A) 53.0" (1346 mm)
Platform Width (B) 26.88" (683 mm)
Platform Height (C) 9.08" (231 mm)
D 54.32" (1380 mm)
E 33.07" (840 mm)
Net Capacity Up to 2000 lbs. (907 kg) – other capacities available (150% overload protection is provided)
Containment Capacity 22 gal. – 88 gal. total with deployed bladder
Weight 96 lbs.
