Model 4040 IBC™ Tote Bin Scale Sizes & Specifications

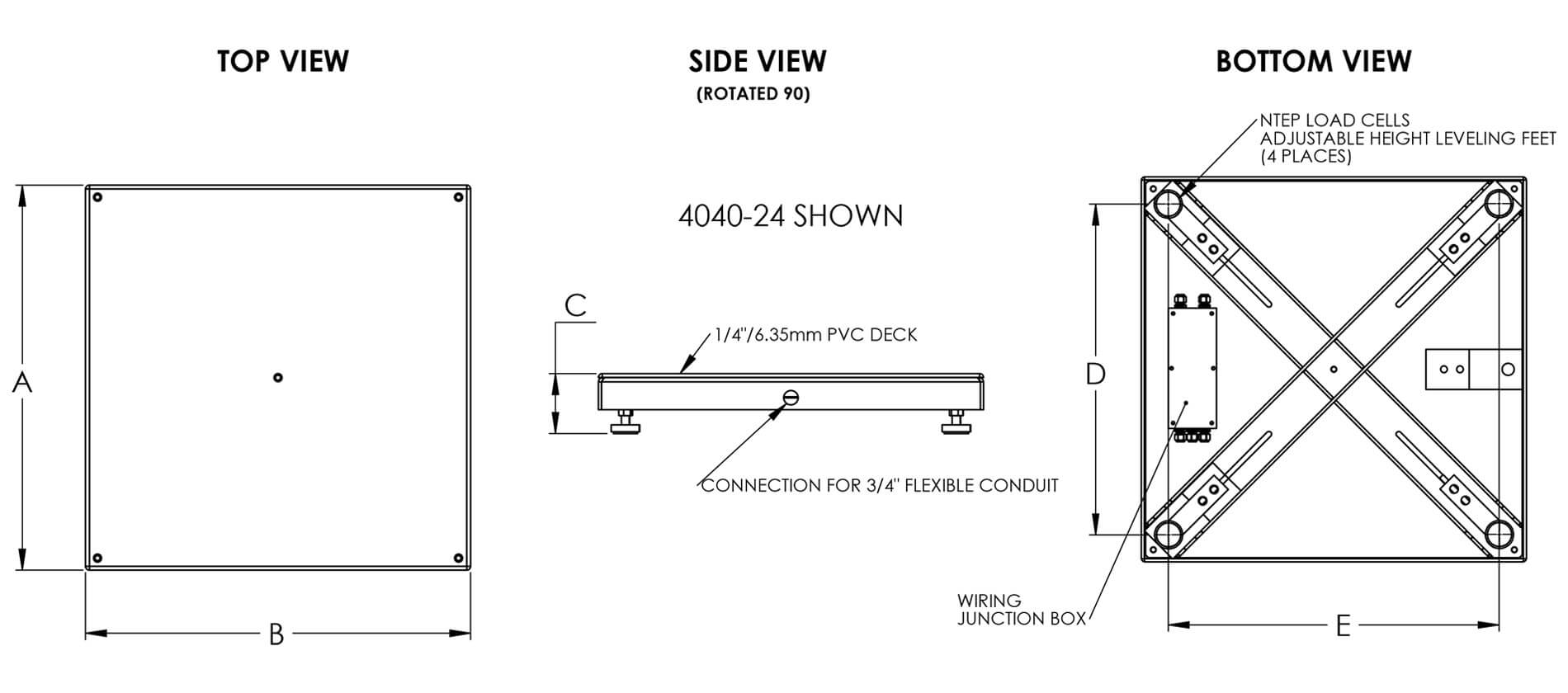

Model 4040 IBC Dimension Drawing

Scale Base

Part Number 4040 IBC-24 4040 IBC-30 4040 IBC-36 4040 IBC-48 4040 IBC-60 4040 IBC-72
Platform Length (A) 24" (610 mm) 30" (762 mm) 36" (914 mm) 48" (1219 mm) 60" (1524 mm) 72" (1829 mm)
Platform Width (B) 24" (610 mm) 30" (762 mm) 36" (914 mm) 48" (1219 mm) 60" (1524 mm) 72" (1829 mm)
Platform Height (C) 3.75" (95 mm) - add 1/2" for bolt down feet 3.75" (95 mm) - add 1/2" for bolt down feet 3.75" (95 mm) - add 1/2" for bolt down feet 4.75" (121 mm) - add 1/2" for bolt down feet 4.75" (121 mm) - add 1/2" for bolt down feet 5.44" (138 mm) – add 1/2" for bolt down feet
D 19.78" (503 mm) 26.37" (670 mm) 31.82" (808 mm) 44.62" (1133 mm) 58" (1473 mm) 65" (1651 mm)
E 20.75" (527 mm) 27.05" (687 mm) 36.42" (925 mm) 45.17" (1147 mm) 58" (1473 mm) 65" (1651 mm)
Net Capacity Up to 1000 lbs. (454 kg) – custom capacities available (150% overload protection is provided) Up to 1000 lbs. (454 kg) – custom capacities available (150% overload protection is provided) Up to 2500 lbs. (1134 kg) – custom capacities available (150% overload protection is provided) Up to 5000 lbs. (2268 kg) – custom capacities available (150% overload protection is provided) Up to 8000 lbs. (3629 kg) – custom capacities available (150% overload protection is provided) Up to 10,000 lbs. (4536 kg) – custom capacities available (150% overload protection is provided)
Weight 130 lbs. 150 lbs. 160 lbs. 240 lbs.

Digital Controllers

Part Number AccuPro 5000-EK AccuPro 5000-PB 1099
Description Digital Scale Controller and Measurement System Digital Scale Controller and Measurement System Chemical Process Controller
Interface Encoder knob push/turn control Keypad with three (3) push buttons 20 Button keypad
Accuracy ±0.1% to ±0.25% of full scale capacity ±0.1% to ±0.25% of full scale capacity ±0.1% to 0.25% of full scale capacity
Display 2x16 Character alphanumeric backlit LCD with 6 digits for weight 2x16 Character alphanumeric backlit LCD with 6 digits for weight 6 Digit LED display for weight values plus backlit LCD alphanumeric display
Display Items Displays net weight plus bar graph with net weight, gross weight and tare adjustment Displays net weight plus bar graph with net weight, gross weight and tare adjustment
Display Screens One (1) single-channel and one (1) dual-channel weight display One (1) single-channel and one (1) dual-channel weight display
Display Units Pounds, kilograms, gallons or liters Pounds, kilograms, gallons or liters Pounds, kilograms, gallons or liters
Channels 1 or 2 - One scale base per channel 1 or 2 - One scale base per channel Up to 4
Output Signal 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, selectable as scale or loop powered 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, scale or loop powered Standard on channel 1 – Loop powered (available for channels 2 thru 4)
Set Points 2 or 4 Relay contacts per channel (high or low) 2 or 4 Relay contacts per channel (high or low) 1 to 4 Relay contacts (high or low)
Remote Option Can be remotely mounted up to 200 feet from base frame Can be remotely mounted up to 200 feet from base frame Can be remotely mounted up to 200 feet from base frame
Audible Alarm 78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support 78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support Optional piezo buzzer alarm with adjustable volume
Power 90/240 VAC, 50/60 Hz, 0.10/0.05A 90/240 VAC, 50/60 Hz, 0.10/0.05A 120/240 VAC, 50/60 Hz, 0.10/0.05A
Enclosure NEMA 4X, UL approved wall mount enclosure NEMA 4X, UL approved wall mount enclosure NEMA 4X, UL approved enclosure
Weight 7 lbs. 7 lbs. 9 lbs.
