Scaletron™ Sets The Standard
In Corrosion Resistance™
In Corrosion Resistance™

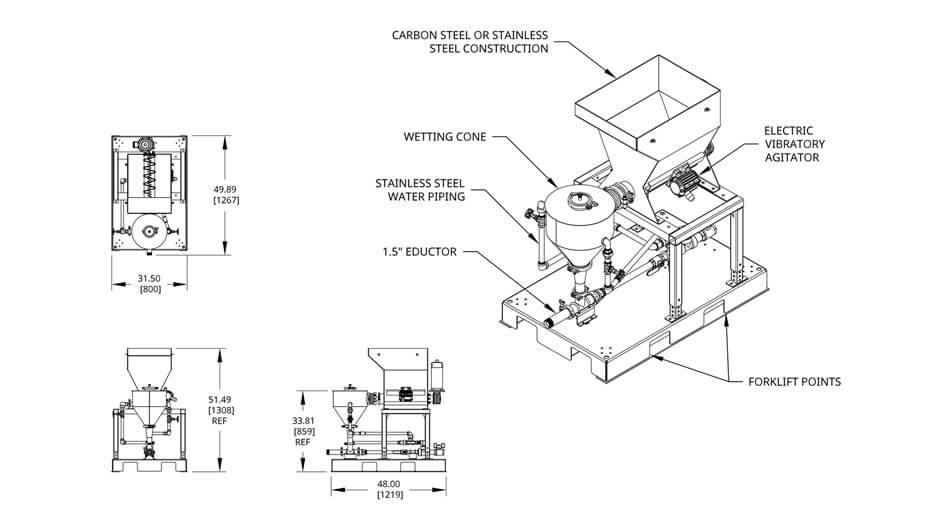

| Part Number | VMF-90F |
|---|---|
| Construction | Carbon steel with corrosion resistant zinc oxide primed, dry powder epoxy coating - 304 or 316 stainless steel optional |
| Hopper Capacity | 3.6 cu. ft. |
| Feed Rate | 0.36 to 3.56 cu. ft. per hour |
| Accuracy | 1% of volume |
| Feed Screw | 1.5" diameter open helix feed screw in 304 or 316 stainless steel |
| Overwind Helix | Concentric overwind material conditioning auger in 304 or stainless steel |
| Controls | Remote location mountable, programmable SCR controller module with HMI screen in stainless steel NEMA 4X enclosure |
| Control Input | 4-20 mA |
| Motor Type | Right-angle geared, TENV 90 VDC, Washguard® motor 1/2 HP, 83 RPM |
| Available Motors | Explosion proof - TENV 90 VDC 1/2 HP motor and gearing |
| Vibratory Agitator | Electric (Pneumatic is optional) |
| Wetting Cone | High volume with 1.5" eductor |
| Ambient Temperature Limit | 10°C - 40°C |
| Power | 115/230 VAC, 50-60 Hz, 4 Amps |
| Weight | Contact factory |
