Model AccuPro 1000™ Economical Digital Scale Controller with Push Button Keypad

Economical Digital Scale Controller with 1 or 2 Channels Offers Push Button Input

The Model AccuPro 1000 Digital Scale Controller and Measurement System is designed for use with Scaletron’s complete line of cylinder, ton cylinder, drum, tank, platform, IBC tote and spill containment scale bases. Featuring an easy to read alphanumeric/graphic LCD display and push button keypad, the controller provides an excellent accuracy of ±0.1% to ±0.25% of full scale capacity and will display net weight in pounds, kilograms, gallons, or liters. The controller is available with 1 or 2 channels with optional 4-20 mA outputs. The 4-20 mA output (scale or loop powered) is scalable to a user defined value, and is adjustable. The controller allows the user to easily adjust configuration, tare, and view system diagnostics. The user may apply the indicator to filling applications, as well as loading applications.

Standard Features

• Electronic indicator housed in NEMA 4X, UL approved wall mount enclosure to provide protection from acids
• Single or dual-channel operation
• Keypad input interface with four (4) or eight (8) push buttons
• Displays gross or net weight, display unit, and tare
• Compatibility with all Scaletron scales
• Ability to mix different scale types on dual model controller
• Field programmable and calibratable
• 6 Foot power cord

Options

• 4-20 mA analog output for each channel – scale or loop powered
• Remote mounting of indicator box up to 200 feet (61 meters) away from scale base

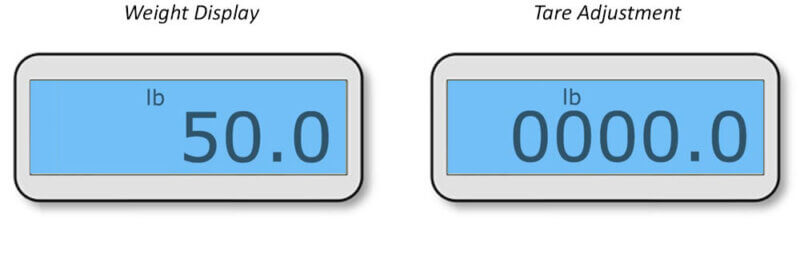

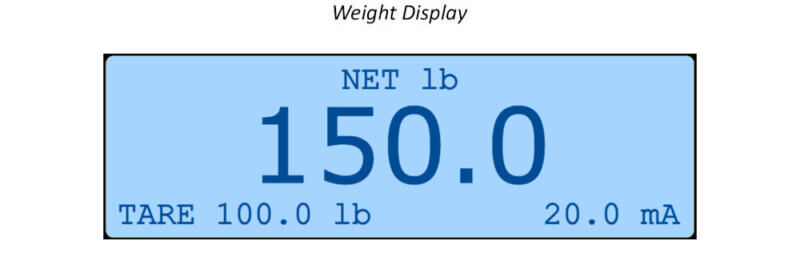

Display Screens

• Displays net or gross weight, display unit, tare, mA output signal (if applicable), and error status
• One (1) per channel
