Scaletron™ Sets The Standard
In Corrosion Resistance™
In Corrosion Resistance™

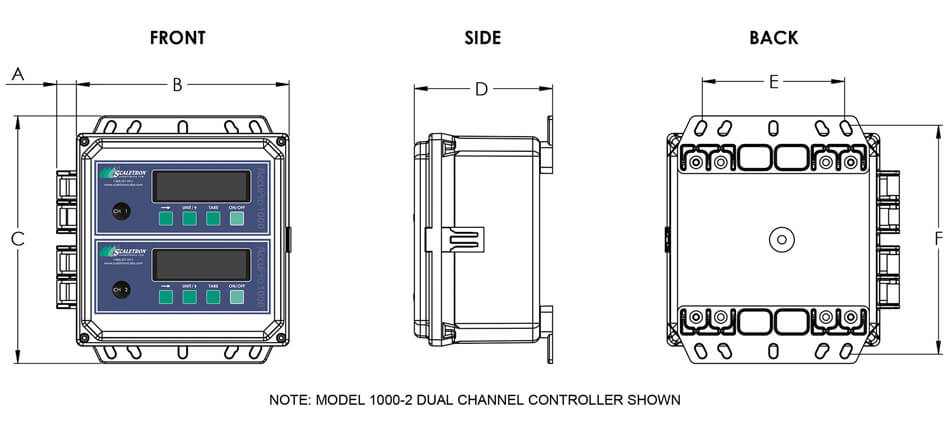

| Part Number | AccuPro 1000 |
|---|---|
| A | .79" (20 mm) |
| B | 8.59" (218 mm) |
| C | 9.99" (254 mm) |
| D | 5.63" (143 mm) |
| E | 5.75" (146 mm) |
| F | 9.25" (235 mm) |
| Interface | Keypad with four (4) or eight (8) push buttons |
| Accuracy | ±0.1% to ±0.25% of full scale capacity |
| Display | Backlit graphical LCD with up to 6 weight digits |
| Display Items | Displays net or gross weight, display unit, tare, mA output signal (if applicable), and error status |
| Display Screens | One (1) per channel |
| Display Units | Pounds, kilograms, gallons, or liters |
| Channels | 1 or 2 - One scale base per channel |
| Output Signal | 4-20 mA output per channel, based on net weight, scale or loop powered |
| Remote Option | Can be remotely mounted up to 200 feet from base frame |
| Power | 100-250 VAC, 50/60 Hz, max 6 watts |
| Enclosure | NEMA 4X, UL approved wall mount enclosure |
| Weight | 7 lbs. |
