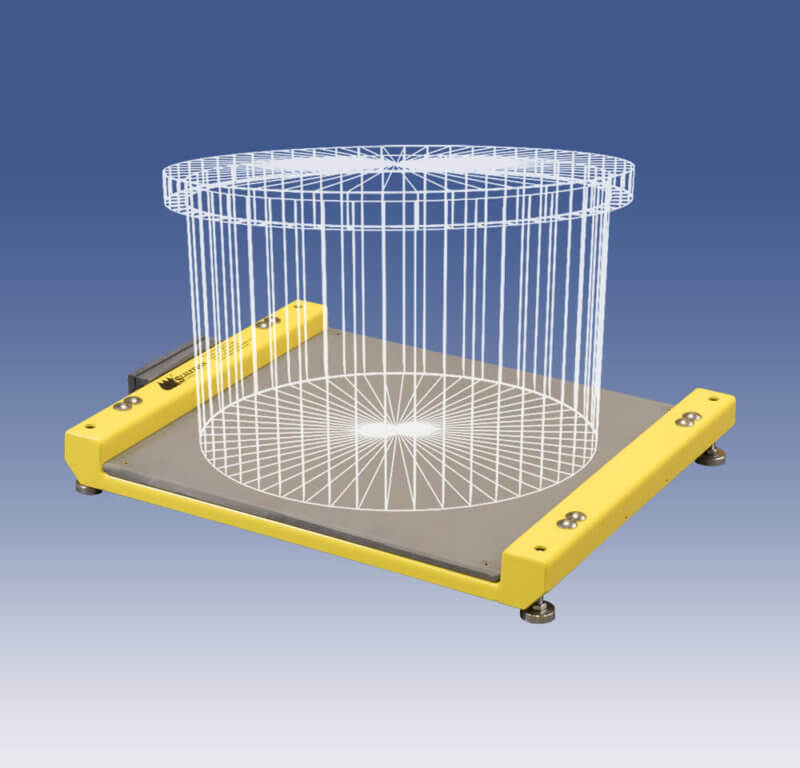

Model 4041™ Ultra-Low Profile Platform Scale

QUICK SPECS

  • Designed for frequent on and off loading of drums, tanks and IBC tote bins
  • Standard base sizes: 24″x24″, 30″x30″
  • Net capacity: Up to 1,000 lbs. (454 kg)
  • High accuracy of ±0.1% of capacity
  • Single or multi-channel controllers with easy readability to 0.1 lb. (kg)
  • Readout in pounds, kilograms, gallons or liters

Request Quote



Scaletron 5 Year Warranty on All Scale Products

Ultra-Low Profile, High Capacity Platform Scale for Applications Requiring Frequent On/Off Loading of Drums, Tanks and Totes

The Model 4041 Ultra-Low Profile Platform Scale is designed for weighing drums, tanks and totes up to 30″x30″ and offers a net capacity of up to 1,000 lbs. Featuring corrosion resistant construction and a four (4) load cell design, the ultra-low profile base (1.8″) allows for safe and easy handling of containers. Indicators are available from 1 to 4 channels with 4-20 mA outputs and optional set point relays. MADE IN USA.

Standard Features

  • Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with solid 1/4″ PVC decking for use in harsh environments
  • Ultra-low profile platform design increases safety and ease of drum handling
  • Accommodates off-center loads
  • Four (4) NTEP stainless steel shear beam, temperature compensated load cells
  • All hardware is stainless steel to prevent corrosion
  • Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
  • 20 ft. of 4 conductor wire cable

Available Controllers

  • AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered
  • Model 1099 Chemical Process Controller with 1 to 4 channels, 20 button keypad and 4-20 mA output signal – scale or loop powered

Options

  • High and low level set points
  • 0-5V or 0-10V output signal
  • Remote mounting of indicator box up to 200 feet (61 meters) away – includes junction box and additional length of 4 conductor wire cable

Chemicals

  • Scale is designed to accurately measure weight of alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders
