Model 3000™ Digital Ton Cylinder Scale Sizes & Specifications

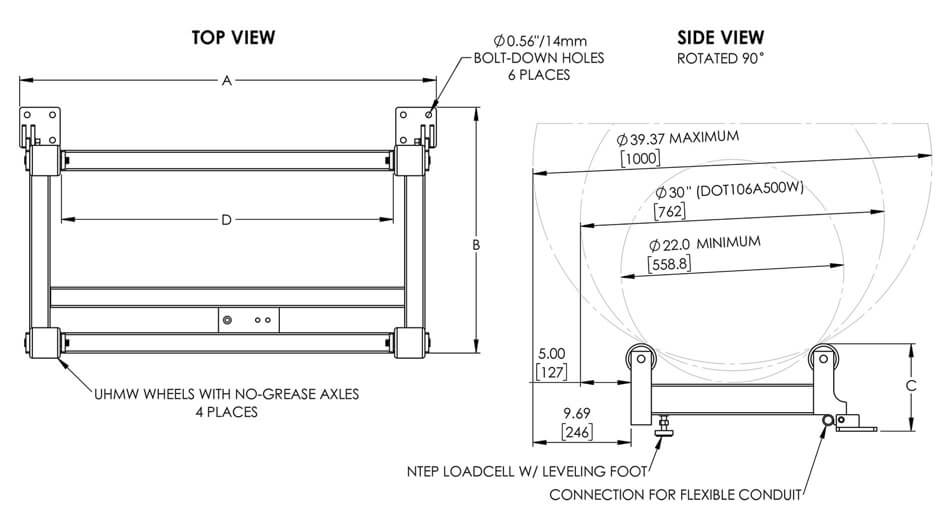

Model 3000 Dimension Drawing

Scale Base

Part Number 3000
Platform Length (A) 41.13" (1045 mm)
Platform Width (B) 24.25" (616 mm)
Platform Height (C) 8.63" (219 mm) from floor to top of 3" UHMW roller
D 32.75" (832 mm)
Net Capacity Up to 2000 lbs. (907 or 1000 kg) (150% overload protection is provided)
Weight 110 lbs.

Digital Controllers

Part Number AccuPro 5000-EK AccuPro 5000-PB ACCUPRO 6000-PLC
Description Digital Scale Controller and Measurement System Digital Scale Controller and Measurement System COMING SOON
Interface Encoder knob push/turn control Keypad with three (3) push buttons
Accuracy ±0.1% to ±0.25% of full scale capacity ±0.1% to ±0.25% of full scale capacity
Display 2x16 Character alphanumeric backlit LCD with 6 digits for weight 2x16 Character alphanumeric backlit LCD with 6 digits for weight
Display Items Displays net weight plus bar graph with net weight, gross weight and tare adjustment Displays net weight plus bar graph with net weight, gross weight and tare adjustment
Display Screens One (1) single-channel and one (1) dual-channel weight display One (1) single-channel and one (1) dual-channel weight display
Display Units Pounds, kilograms, gallons or liters Pounds, kilograms, gallons or liters
Channels 1 or 2 - One scale base per channel 1 or 2 - One scale base per channel
Output Signal 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, selectable as scale or loop powered 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, scale or loop powered
Set Points 2 or 4 Relay contacts per channel (high or low) 2 or 4 Relay contacts per channel (high or low)
Remote Option Can be remotely mounted up to 200 feet from base frame Can be remotely mounted up to 200 feet from base frame
Audible Alarm 78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support 78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support
Power 90/240 VAC, 50/60 Hz, 0.10/0.05A 90/240 VAC, 50/60 Hz, 0.10/0.05A
Enclosure NEMA 4X, UL approved wall mount enclosure NEMA 4X, UL approved wall mount enclosure
Weight 7 lbs. 7 lbs.
