Model 3000™ Digital Ton Cylinder Scales

QUICK SPECS

  • Designed for weighing ton cylinders and containers
  • Standard base sizes: 42-1/2″ x 24-1/4″
  • Net capacity: Up to 2,000 lbs. (907 or 1000 kg)
  • High accuracy of ±0.25% of capacity
  • Single or multi-channel controllers with easy readability to 0.1 lb. (kg)
  • 1 to 6 Bases may be summed together into one indicator
  • Readout in pounds or kilograms, gallons or liters

Request Quote



Scaletron 5 Year Warranty on All Scale Products

Rugged Scale Provides Accurate Weighing of Ton Containers in High Volume Operations

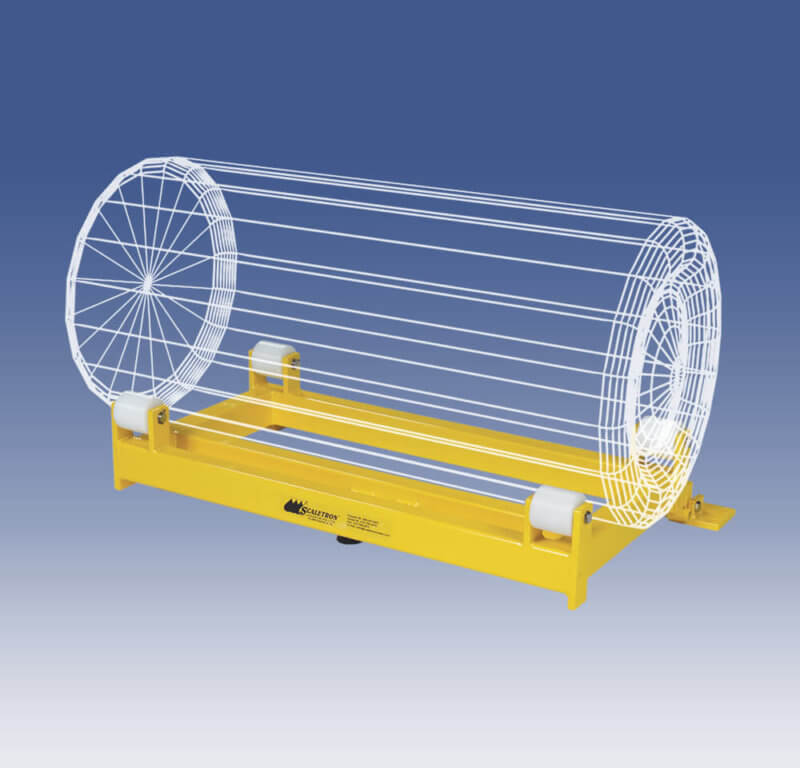

The Model 3000 Digital Ton Cylinder Scale is designed for weighing standard ton cylinders from 22″ to 39″ in diameter and offers a net capacity of up to 2,000 lbs. Featuring corrosion resistant construction and an economical single load cell design, the rugged low-profile base allows for safe and easy handling of containers. Indicators are available from 1 to 4 channels with 4-20 mA outputs and optional set point relays. MADE IN USA.

Standard Features

  • Rugged steel construction protected by a corrosion resistant dry powder epoxy finish
  • Low profile platform design (8 1/2″) increases safety and ease of cylinder handling
  • Trunnions with solid UHMW polyethylene rollers on stainless steel axles for ease of turning
  • NTEP stainless steel shear beam, temperature compensated load cell with built-in mechanical overload stop to protect it from damage during rough cylinder loading
  • Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
  • 20 ft. of 4 conductor wire cable

Available Controllers

  • AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered
  • Model 1099 Chemical Process Controller with 1 to 4 channels, 20 button keypad and 4-20 mA output signal – scale or loop powered

Options

  • High and low level set points
  • 0-5V or 0-10V output signal
  • Remote mounting of indicator box up to 200 feet (61 meters) away – includes junction box and additional length of 4 conductor wire cable
  • Cylinder restraining straps

Chemicals

  • Scale is designed to accurately measure weight of ammonia, carbon dioxide, hydrogen chloride, liquefied chlorine, sulfur dioxide and other liquid gases
