Model 3000™ Series Ton Cylinder Scales Features & Benefits

Model 3000 Series Ton Cylinder Scales Features & Benefits

Model 3000™ Series Corrosion Resistant Ton Cylinder Scales offer many advantages that our competitors can’t match!

Ideal for Weighing Corrosive Chemicals – in a Wide Range of Industries

  • Wastewater and Sewage Treatment
  • Municipal Water Treatment
  • Industrial Process & Wastewater Treatment

Multiple Scale Sizes & Capacities – for a Wide Range of Applications

Scaletron is the only company to offer a complete line of Corrosion Resistant Cylinder Scales and accessories including lifting bars, storage trunnions, turning wrenches and conversion kits for older hydraulic scales. With single and multiple cylinder designs our scales are equipped to handle a wide range of chemical weighing applications. In addition, they offer the ability to sum up to sixteen scale bases together on one digital indicator.

Standard Ton Containers – can be Accurately Weighed

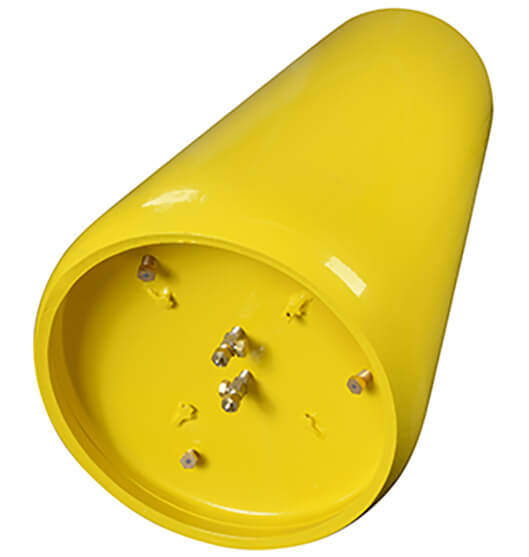

Ton Chlorine Container
Ton Chlorine Container

Scaletron’s Corrosion Resistant Ton Cylinder Scales will accurately weigh standard liquefied gas ton containers.

Rugged, Corrosion-Resistant Construction – Backed by a Five-Year Warranty

To provide protection against harsh chemicals and environments, Scaletron’s corrosion resistant design features stainless steel load cells and hardware with a rugged steel frame that is zinc oxide primed and dry powder epoxy coated – all backed by a five year warranty. Typical chemicals being weighed are highly corrosive and include liquefied gases such as argon, ammonia, carbon dioxide, chlorine, hydrogen chloride, nitrogen, sulfur dioxide and other specialty gases

Indicators & Controllers – from Basic to Advanced

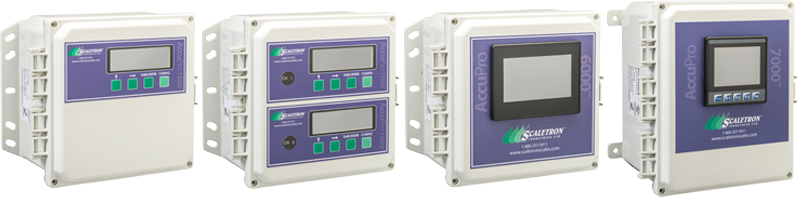

AccuPro 5000 & 6000 Series Controllers
AccuPro 1000, 5000, 6000 & 7000 Series Controllers

A complete line of digital controllers are available to meet a wide variety of application requirements including weighing, dosing and batching.

Single Load Cell Designs – with Overload Protection

Unlike competitive models that use a combination of a hydraulic load cell and a pressure transducer, Scaletron’s ton container scales feature fully electronic, digital operation. On all 3000 Series scales the base features an NTEP approved stainless steel shear beam load cell with a leveling foot and a built-in mechanical overload stop to prevent damage during cylinder handling.

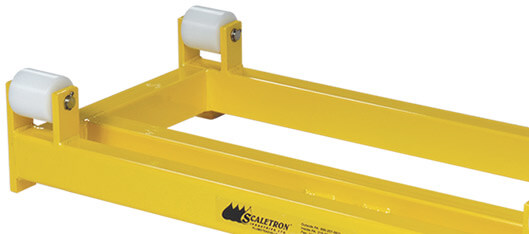

UHMW Rollers – for Maintenance Free Operation

UHMW Rollers for Easy Loading
UHMW Rollers Enable Easy Loading

Maintenance-free UHMW rollers mounted on stainless steel axles require no lubrication and are designed to move freely to ensure that container is properly centered. All 3000 Series scales are ideal for frequent on/off loading of cylinders.

Less Down Time – for Lower Costs

Increased reliability means, lower costs. With Scaletron’s scales, cost savings are realized by eliminating the facility downtime that typically occurs to replace damaged load cells or corroded parts. Designed for rugged service, Scaletron’s ton cylinder scales consistently outlast the competition. Facilities will log less down time and more hours in operation by simply using the Scaletron Model 3000 Series Corrosion Resistant ton Cylinder Scales in place of another manufacturer’s. Over the long run our scales save money.

SCADA Integration – for Improved Chemical Monitoring

Remote Monitoring of Scales
Remote Monitoring of Scales

Scaletron’s indicators and process controllers offer a built-in 4-20 mA analog output that can be used in conjunction with a scale indicator. The 4-20 mA output allows Scaletron’s scales to be integrated via PLC with other local equipment or SCADA systems at a central monitoring station. Ideal for remote installations, it reduces the need to visit the site where the scale is located.

Custom Calibrated – for Easy Installation

Prior to shipment, Scaletron custom calibrates and tests all equipment to customers’ exact specifications and application requirements. Scale indicators, depending on the model, can be calibrated in various units of weight or volume including pounds, kilograms, gallons and liters.

With so many advantages, it is easy to see why Scaletron’s Model 3000™ Series Corrosion Resistant Ton Cylinder Scales are the best choice for all types of chemical weighing applications. Contact us today to find out how Scaletron scales can improve your operations.
