Model 3050™ Ton Cylinder Scale Conversion Kit Specifications

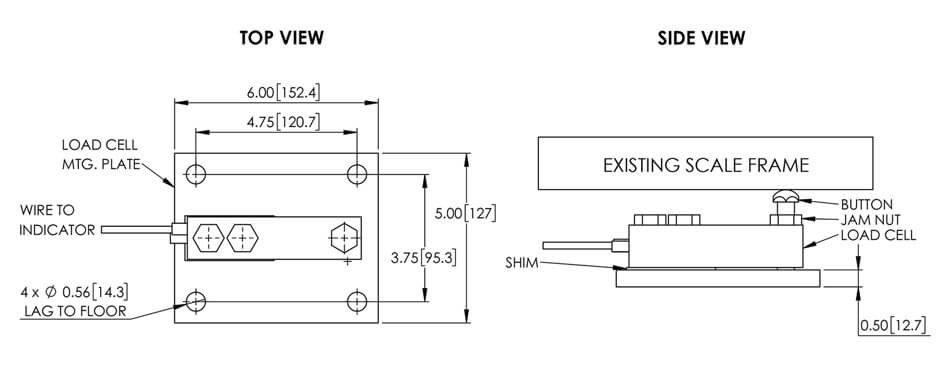

Model 3050 Dimension Drawing

Scale Base

Part Number 3050
Platform Length (A) 6.0" (152 mm)
Platform Width (B) 5.0" (127 mm)
Platform Height (C) 3.0" (76 mm) from floor to top of load cell button – Adjustable
Net Capacity Up to 2000 lbs. (907 or 10004 kg) - (150% overload protection is provided)
Weight 110 lbs.

Digital Controllers

Part Number AccuPro 5000-EK AccuPro 5000-PB 1099
Description Digital Scale Controller and Measurement System Digital Scale Controller and Measurement System Chemical Process Controller
Interface Encoder knob push/turn control Keypad with three (3) push buttons 20 Button keypad
Accuracy ±0.1% to ±0.25% of full scale capacity ±0.1% to ±0.25% of full scale capacity ±0.1% to 0.25% of full scale capacity
Display 2x16 Character alphanumeric backlit LCD with 6 digits for weight 2x16 Character alphanumeric backlit LCD with 6 digits for weight 6 Digit LED display for weight values plus backlit LCD alphanumeric display
Display Items Displays net weight plus bar graph with net weight, gross weight and tare adjustment Displays net weight plus bar graph with net weight, gross weight and tare adjustment
Display Screens One (1) single-channel and one (1) dual-channel weight display One (1) single-channel and one (1) dual-channel weight display
Display Units Pounds, kilograms, gallons or liters Pounds, kilograms, gallons or liters Pounds, kilograms, gallons or liters
Channels 1 or 2 - One scale base per channel 1 or 2 - One scale base per channel Up to 4
Output Signal 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, selectable as scale or loop powered 4-20mA Standard, 0-5V or 0-10V optional – 1 Output per channel, scale or loop powered Standard on channel 1 – Loop powered (available for channels 2 thru 4)
Set Points 2 or 4 Relay contacts per channel (high or low) 2 or 4 Relay contacts per channel (high or low) 1 to 4 Relay contacts (high or low)
Remote Option Can be remotely mounted up to 200 feet from base frame Can be remotely mounted up to 200 feet from base frame Can be remotely mounted up to 200 feet from base frame
Audible Alarm 78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support 78 dB internal piezo buzzer alarm with adjustable volume, external buzzer support Optional piezo buzzer alarm with adjustable volume
Power 90/240 VAC, 50/60 Hz, 0.10/0.05A 90/240 VAC, 50/60 Hz, 0.10/0.05A 120/240 VAC, 50/60 Hz, 0.10/0.05A
Enclosure NEMA 4X, UL approved wall mount enclosure NEMA 4X, UL approved wall mount enclosure NEMA 4X, UL approved enclosure
Weight 7 lbs. 7 lbs. 9 lbs.
