Model 3050™ Ton Cylinder Scale Conversion Kit

QUICK SPECS

  • Designed for converting old hydraulic ton bases to a modern electronic system
  • Plate size: 6″x5″
  • Net capacity: Up to 2,000 lbs. (907 OR 1000 kg) per base
  • High accuracy of ±0.5% of capacity
  • Single or multi-channel controllers with easy readability to 0.1 lb. (kg)
  • 1 – 6 Bases may be summed together into one indicator
  • Readout in pounds, kilograms, gallons or liters

Request Quote



Scaletron 5 Year Warranty on All Scale Products

Easily Convert Old Hydraulic Scales to A Modern Electronic System

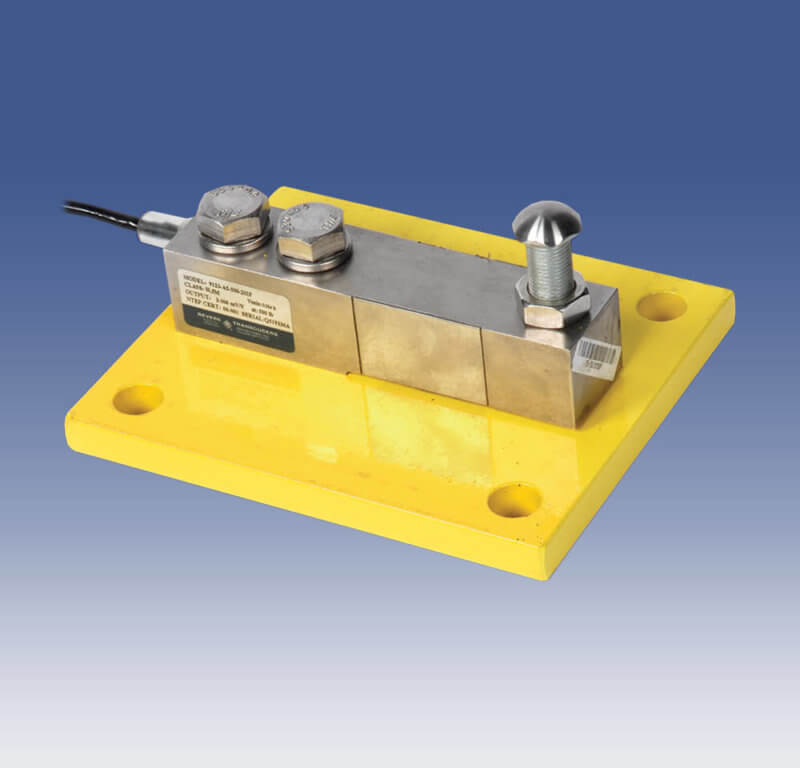

The Model 3050 Ton Cylinder Scale Conversion Kit is designed for converting old hydraulic ton bases to a modern digital scale and offers a net capacity of up to 2,000 lbs. per base. Featuring corrosion resistant construction, kit includes load cell and mounting plate. Indicators are available from 1 to 4 channels with 4-20 mA outputs and optional set point relays. MADE IN USA.

Standard Features

  • Rugged steel construction protected by a corrosion resistant finish
  • Scale conversion plate and indicator
  • Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
  • NTEP stainless steel shear beam, temperature compensated load cell with built-in mechanical overload stop to protect it from damage during rough cylinder loading

Available Controllers

  • AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered
  • Model 1099 Chemical Process Controller with 1 to 4 channels, 20 button keypad and 4-20 mA output signal – scale or loop powered

Options

  • High and low level set points
  • 0-5V or 0-10V output signal
  • Remote mounting of indicator box up to 200 feet (61 meters) away
  • Junction box
  • Additional length of 4 conductor wire cable

Chemicals

  • Scale is designed to accurately measure weight of ammonia, carbon dioxide, hydrogen chloride, liquefied chlorine, sulfur dioxide and other liquid gases
