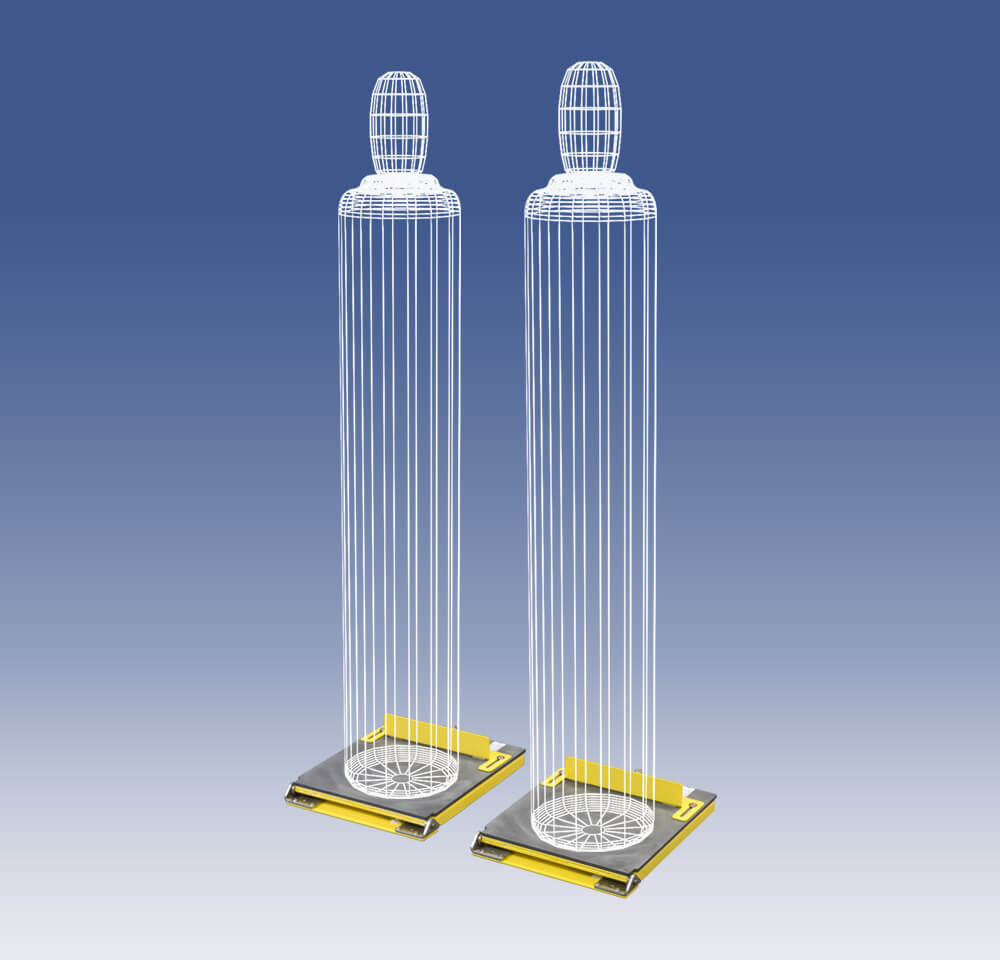

Model 2305D™ Economical Digital Dual Cylinder Scale w/ AccuPro 5000 Digital Controller


Scale is designed for weighing two 12″ diameter and smaller cylinders simultaneously and offers a gross capacity range of up to 300 lbs. Featuring corrosion resistant construction and an economical single load cell design, scale includes two independent weighing platforms for one cylinder each and a two (2) channel AccuPro 5000 Digital Controller housed in a NEMA 4X UL approved enclosure with encoder knob or 3 button keypad control. Also provided are 12 ft. of 4 conductor shielded cable to connect controller to base plus cylinder supports with tool racks and chains to secure cylinders. Base is dry powder epoxy coated steel with PVC decking and has stainless steel hardware. Includes 4-20 mA output and 85/265 VAC.

Additional information

Weight 60 lbs
Dimensions 23 × 12 × 14 in
