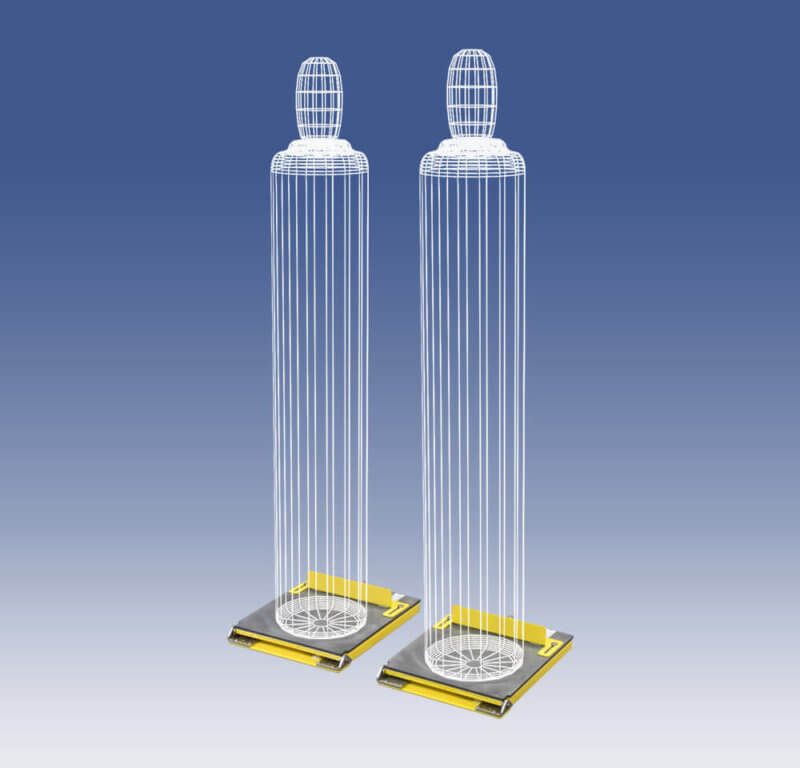

Model 2305D™ Economical Digital Dual Cylinder Scale


  • Designed for weighing cylinders up to 12” in diameter
  • Two independent weighing bases and digital LCD displays
  • Base sizes: 12-5/8″x14-3/4″
  • Net capacity: Up to 150 lbs. (68 or 70 kg) per base
  • High accuracy of ±0.25% of capacity
  • Multi-channel controllers with easy readability to 0.1 lb. (kg)
  • Readout in pounds, kilograms, gallons or liters

Request Quote Buy Online


Scaletron 5 Year Warranty on All Scale Products

Economical Scale is Designed for Weighing Two Gas Cylinders Simultaneously

The Model 2305D Economical Digital Dual Cylinder Scale is designed for weighing two gas cylinders up to 12″ in diameter simultaneously and offers a net capacity of up to 150 lbs. Featuring corrosion resistant construction and an economical single load cell design, the low-profile base and adjustable backstop allows for safe and easy handling and centering of cylinders. Indicators are available from 2 to 4 channels with 4-20 mA outputs and optional set point relays. MADE IN USA.

Standard Features

  • Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with solid 1/4″ PVC decking for use in harsh environments
  • Low profile platform design (1.56″) increases safety and ease of cylinder handling
  • Designed for centered loads – includes heavy-duty steel backstop with measuring guides to help position the cylinder
  • Two (2) stainless steel, temperature compensated button load cells
  • All hardware is stainless steel to prevent corrosion
  • Mounting holes for securing base frame to floor
  • Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
  • 12 ft. of 4 conductor wire cable
  • Cylinder support with tool rack and chains

Available Controllers

  • AccuPro 5000 Digital Controller with 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered
  • AccuPro 6000 Digital Controller with 2 channels, touch screen, audible alarm and 4-20 mA output signal – scale powered


  • High and low level set points
  • 0-5V or 0-10V output signal
  • Remote mounting of indicator box up to 200 feet (61 meters) away – includes junction box and additional length of 4 conductor wire cable


  • Scale is designed to accurately measure weight of ammonia, carbon dioxide, hydrogen chloride, liquefied chlorine, sulfur dioxide and other liquid gases
