Model 4010™ Digital Tank Scale

QUICK SPECS

  • Designed for permanently mounting a tank or drum for pump in/out applications
  • Standard base sizes: 24″x24″, 30″x30″, 36″x36″, 48″x48″ – custom sizes available
  • Net capacity: Up to 5,000 lbs. (2268 kg) – custom capacities available
  • High accuracy of ±0.25% of capacity
  • Single or multi-channel controllers with easy readability to 0.1 lb. (kg)
  • Readout in pounds, kilograms, gallons or liters

Request Quote



Scaletron 5 Year Warranty on All Scale Products

Accurately Weigh a Permanently Mounted a Tank or Drum in Pump In/Out Applications

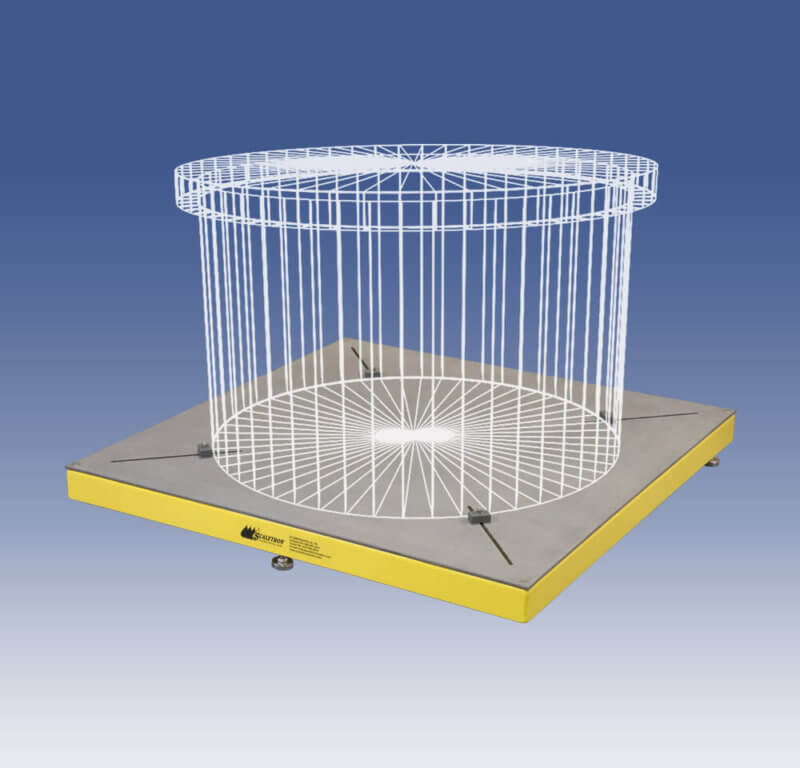

The Model 4010 Digital Tank Scale is designed for weighing a permanently mounted tank or drum up to 48″ in diameter and offers a net capacity of up to 5,000 lbs. Featuring corrosion resistant construction and an economical single load cell design, the scale base is ideal for high capacity, centered load, pump in/out applications. Indicators are available from 1 to 4 channels with 4-20 mA outputs and optional set point relays. MADE IN USA.

Standard Features

  • Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with solid 1/4″ PVC decking for use in harsh environments
  • Low profile platform (3.75″ or 4.75″) design increases safety and ease of tank handling
  • Designed for centered loads – includes adjustable tank centering blocks in base
  • NTEP stainless steel shear beam, temperature compensated load cell
  • All hardware is stainless steel to prevent corrosion
  • Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
  • 20 ft. of 4 conductor wire cable

Available Controllers

  • AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered
  • Model 1099 Chemical Process Controller with 1 to 4 channels, 20 button keypad and 4-20 mA output signal – scale or loop powered

Options

  • High and low level set points
  • 0-5V or 0-10V output signal
  • Remote mounting of indicator box up to 200 feet (61 meters) away – includes junction box and additional length of 4 conductor wire cable
  • Seismic hold down brackets
  • Stainless steel, ball-bearing bolt down feet (3)

Chemicals

  • Scale is designed to accurately measure weight of alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders
