Model 4042-63 IBC™ Spill Containment IBC Tote Scale

QUICK SPECS

  • Accurately weighs the net remaining chemical that has NOT been dispensed into water treatment system including splashes and small spills that are contained within basin
  • Meets secondary spill containment requirements by the EPA, OSHA, and other local agencies
  • Standard base size: 63″x63″ – other sizes available
  • Net capacity: Up to 8,000 lbs. (3629 kg) – other capacities available
  • Containment capacity: 365 gal.
  • High accuracy of ±0.1% to
  • Single or multi-channel controllers with easy readability to 0.1 lb. (kg)
  • Readout in pounds, kilograms, gallons or liters

Request Quote



Scaletron 5 Year Warranty on All Scale Products

The Ideal Containment Solution for Weighing Applications Requiring Large Volume Spill Protection

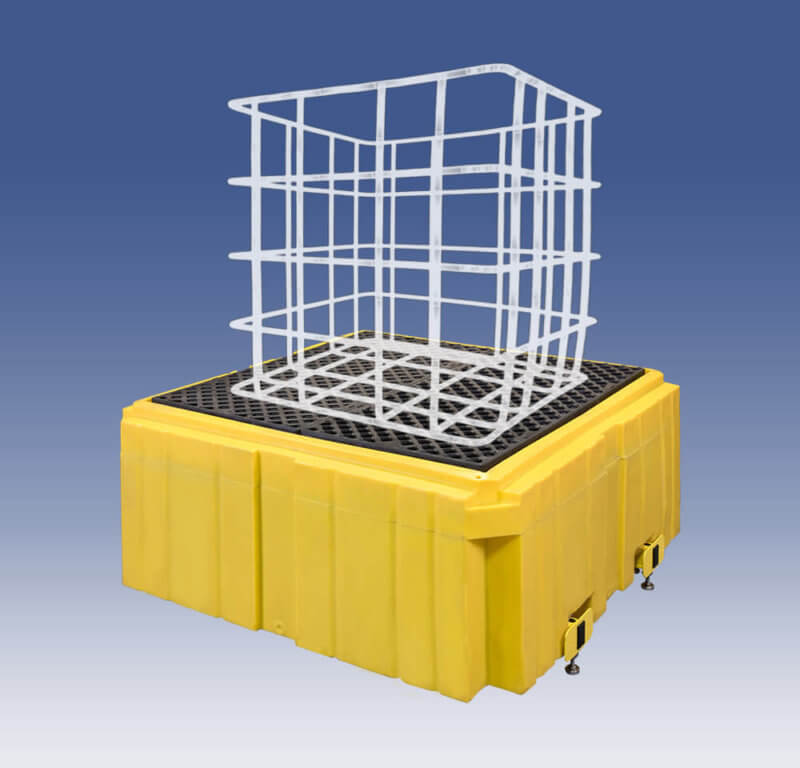

The Model 4042-63 IBC Spill Containment IBC Tote Scale is designed for weighing tote bins up to 63″ x 63″ and offers a net capacity of up to 8,000 lbs. The containment basin holds 365 gallons. Featuring corrosion resistant construction and a four (4) load cell design, the scale base is ideal for high capacity applications requiring frequent on/off loading of containers and meets secondary spill containment requirements by the EPA, OSHA, and other local agencies. Indicators are available from 1 to 4 channels with 4-20 mA outputs and optional set point relays. PATENTED – MADE IN USA.

Standard Features

  • Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with polyethylene deck and containment basin for use in harsh environments
  • Accommodates off-center loads – totes can be placed anywhere on the containment platform and do not need to be leveled
  • Four (4) NTEP stainless steel shear beam, temperature compensated load cells with stainless steel leveling feet
  • Load cells are mounted outside of spill containment basin to eliminate damage due to chemical spills
  • All hardware is stainless steel to prevent corrosion
  • Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
  • 20 ft. of 4 conductor wire cable

Available Controllers

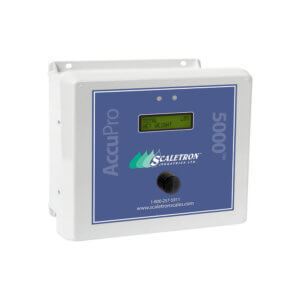

  • AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered

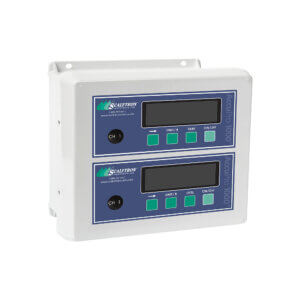

  • Model 1099 Chemical Process Controller with 1 to 4 channels, 20 button keypad and 4-20 mA output signal – scale or loop powered

Options

  • High and low level set points
  • 0-5V or 0-10V output signal
  • Remote mounting of indicator box up to 200 feet (61 meters) away – includes junction box and additional length of 4 conductor wire cable

Chemicals

Scale is designed to accurately measure weight of:

  • Alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders
